Sugar and food industry

Polishing of thin juice at sugar production

Polishing of thin juice

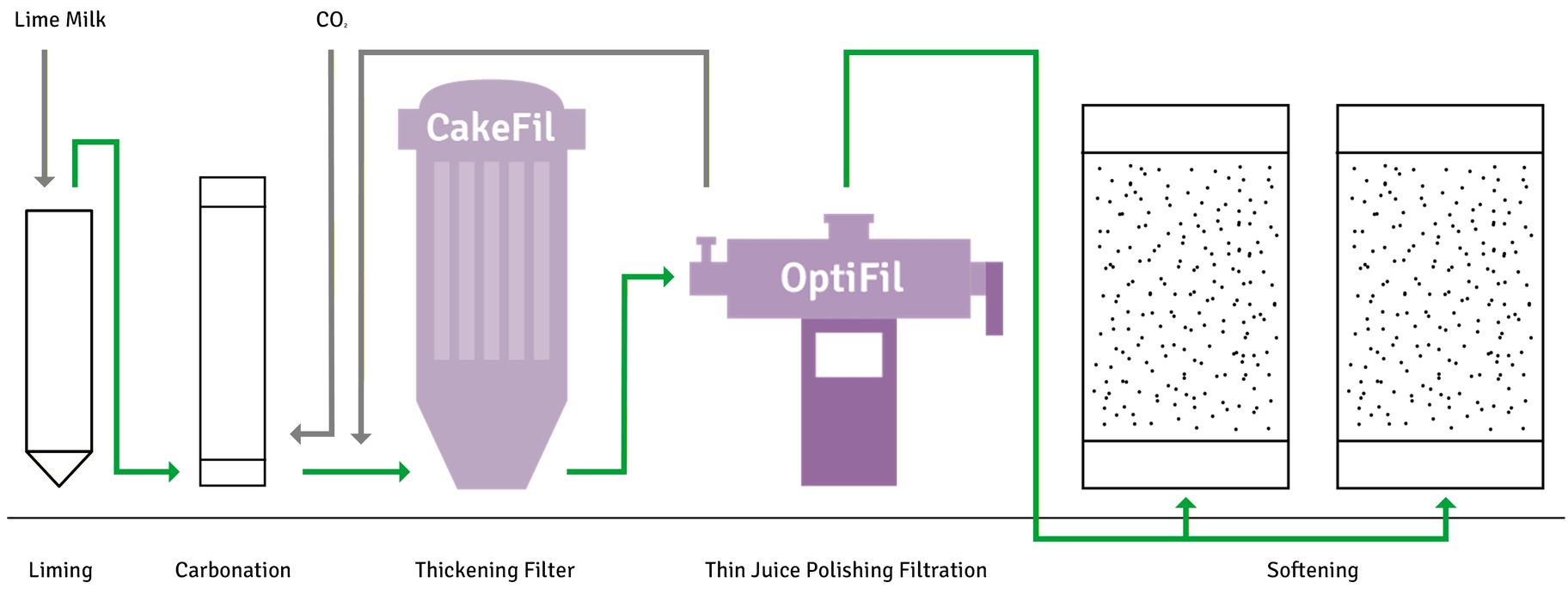

Non-sugar substances are precipitated from the raw sugar juice by adding lime milk and carbon dioxide.

These substances must be filtered out in a two-stage filtration process to protect, for example, downstream water softening systems from clogging and evaporation stations from scale buildup.

Backwash filters are particularly suitable for the second stage due to their space-saving design.

Blockage and scale buildup.

During a sugar campaign, the goal is to minimize manual intervention while ensuring reliable, uninterrupted operation. At the same time, the finest particles must be separated from the remaining medium as economically and efficiently as possible to protect downstream equipment.

Perfect filtrate quality.

LENZING OptiFil is the best solution to efficiently and, above all, cost-effectively remove fine particles.

In addition to the significant space savings compared to precoat filter systems or even filter presses, the OptiFil excels in this application thanks to both, its simplicity, with just one automatic valve per filter, and its reliability.

The solution: LENZING OptiFil

By using precision-woven stainless steel filter media with a pore size of 25 µm, the system delivers optimal filtrate quality and provides perfect protection for downstream equipment.

25 µm Filter fineness
100%reliable removal of contaminants
0%medium loss

LENZING OptiFil installation for the filtration of thin juice during sugar production.

Polishing of thin juice

Advantages of using the LENZING OptiFil system

Cost & space saving

The low maintenance requirements result in significant savings on operating costs. The compact design also takes up very little space.

Filter fineness

The use of fine stainless steel filter media ensures optimal filtrate quality, providing long-term protection for downstream equipment.

Reliability

The proven, patented backwash filter system operates reliably, continuously, and fully automatically.

LENZING OptiFil

The LENZING OptiFil system is a reliable backwash filter for the finest filtration of industrial fluids and in water treatment. Its patented backwash system enables maximum process continuity with minimum backwash quantities.

High backwash efficiency (patented)

Filter fineness down to 1 μm

Very high throughput rates

Completely closed system
